8-bit RISC microcontroller featuring 28KB FLASH memory and 2KB RAM. Operates at 16MHz with a maximum frequency of 32MHz, supporting I2C, SPI, and UART/USART interfaces. Includes 17 ADC channels, 24 I/Os, and 5 timers/counters. Packaged in SOIC for surface mounting, with an operating voltage range of 2.5V to 5.5V and an extended temperature range of -40°C to 85°C. RoHS compliant.
Frequency16MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16LF1718-I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
16MHz
Interface
I2C, SPI, UART, USART
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
28KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of ADC Channels
17
Number of I/Os
24
Number of Timers/Counters
5
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
2KB
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Weight
0.078125oz
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1718-I/SO Datasheet
Download the complete datasheet for Microchip PIC16LF1718-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

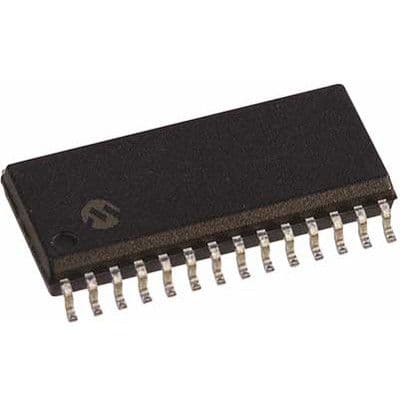

Product Images
