8-bit RISC microcontroller featuring a PIC core architecture, operating at up to 32MHz with an internal oscillator. This surface-mount TQFP package offers 28KB of FLASH memory, 2KB of RAM, and 35 I/Os. Integrated peripherals include I2C, SPI, UART, USART, LIN interfaces, 5 timers/counters, 28 ADC channels, and Brown-out Detect/Reset, POR, PWM, WDT. Designed for operation between -40°C and 85°C with a supply voltage range of 2.5V to 5.5V.
Frequency16MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16LF1719-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
16MHz
Interface
I2C, SPI, UART, USART, LIN
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
28KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of ADC Channels
28
Number of I/Os
35
Number of Timers/Counters
5
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
2KB
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1719-I/PT Datasheet
Download the complete datasheet for Microchip PIC16LF1719-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

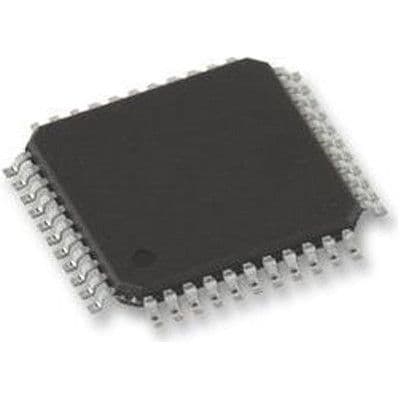

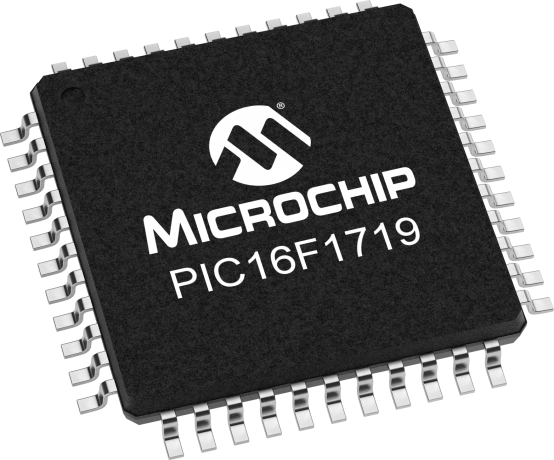

Product Images
