8-bit RISC microcontroller featuring 32MHz operation and 7KB FLASH memory. Includes 512B RAM, 24 I/O pins, and 2 PWM channels. Supports I2C, SPI, and UART/USART interfaces. Operates from 1.8V to 3.6V supply with an internal oscillator. Packaged in a lead-free PQCC28.
Frequency32MHz
Quick Jump:
Technical Specifications
Microchip PIC16LF1783-I/MV technical specifications.
General
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 32MHz |
| Interface | I2C, SPI, UART, USART |
| Lead Free | Lead Free |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 3.6V |
| Memory Size | 7KB |
| Memory Type | FLASH |
| Min Supply Voltage | 1.8V |
| Number of I/Os | 24 |
| Number of Programmable I/O | 25 |
| Number of PWM Channels | 2 |
| Number of Timers/Counters | 3 |
| Oscillator Type | Internal |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 512B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 16F |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16LF1783-I/MV Datasheet
Download the complete datasheet for Microchip PIC16LF1783-I/MV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

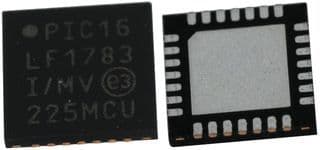

Product Images
