8-bit RISC microcontroller featuring 7KB FLASH memory and 256B RAM. Operates at up to 32MHz with a 2.3V to 3.6V supply voltage. Offers 11 programmable I/Os, I2C, SPI, UART, and USART interfaces. Includes 8 ADC channels, 5 timers/counters, and peripherals like Brown-out Detect, POR, PWM, and WDT. Packaged in a 4mm x 4mm VQFN with 0.95mm height, this lead-free, RoHS compliant component supports a maximum operating temperature of 125°C.
Frequency32MHz
PackageVQFN
Quick Jump:
Technical Specifications
Microchip PIC16LF1824-E/ML technical specifications.
General
| Package/Case | VQFN |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Height | 0.95mm |
| Interface | I2C, SPI, UART, USART |
| Lead Free | Lead Free |
| Length | 4mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 3.6V |
| Memory Size | 7KB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.3V |
| Number of A/D Converters | 1 |
| Number of ADC Channels | 8 |
| Number of Bits | 8 |
| Number of I/Os | 11 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 11 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 5 |
| Number of UART Channels | 1 |
| Number of USB Channels | 1 |
| Oscillator Type | Internal |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 256B |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ mTouch™ 16F |
| Watchdog Timer | Yes |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16LF1824-E/ML Datasheet
Download the complete datasheet for Microchip PIC16LF1824-E/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

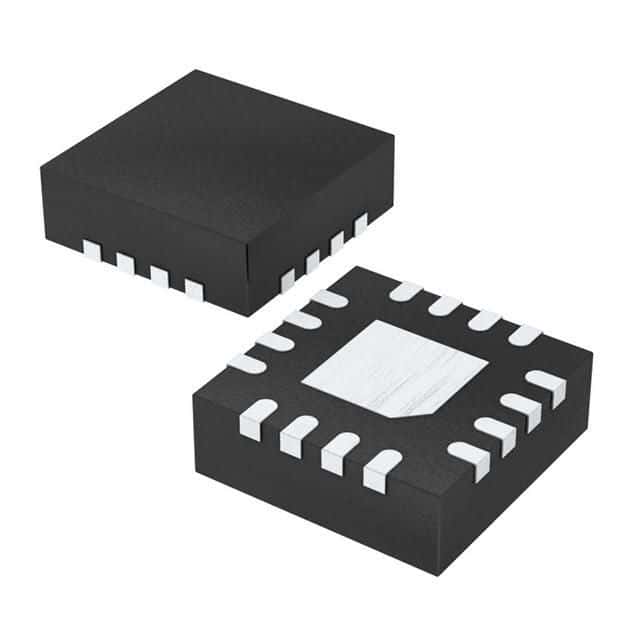

Product Images
