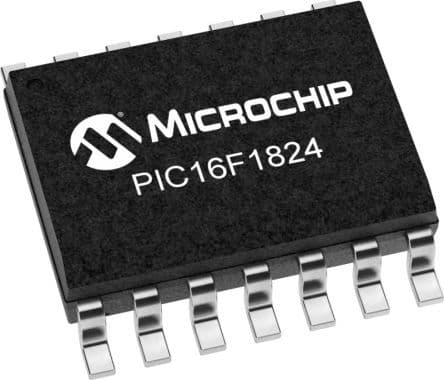

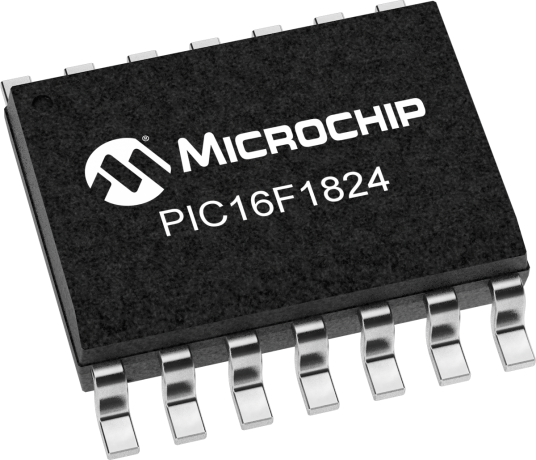

8-bit RISC Flash Microcontroller featuring an 8b data bus and operating at up to 32MHz. This PIC microcontroller offers 7KB of FLASH memory, 256B of RAM, and 11 programmable I/Os. Integrated peripherals include I2C, SPI, and UART/USART interfaces, along with 5 timers/counters and a watchdog timer. Designed for a voltage range of 2.3V to 3.6V, it operates from -40°C to 85°C and is supplied in a 14-pin SOIC N package on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip PIC16LF1824T-I/SL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip PIC16LF1824T-I/SL technical specifications.
| Package/Case | SOIC N |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 32MHz |
| Interface | I2C, SPI, UART, USART |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 3.6V |
| Memory Size | 7KB |
| Memory Type | FLASH |
| Min Supply Voltage | 2.3V |
| Number of I/Os | 11 |
| Number of Programmable I/O | 11 |
| Number of Timers/Counters | 5 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RAM Size | 256B |
| RoHS Compliant | Yes |
| Watchdog Timer | Yes |
| RoHS | Compliant |
Download the complete datasheet for Microchip PIC16LF1824T-I/SL to view detailed technical specifications.
