8-bit RISC microcontroller featuring 32MHz operation and 3.5KB FLASH memory. This PDIP-packaged MCU offers 15 I/Os, including 16 programmable I/Os, and supports I2C, SPI, and UART interfaces. With a 256B RAM, 12-channel ADC, and multiple peripherals like PWM and WDT, it operates from 2.5V to 3.6V. Ideal for embedded applications, this RoHS compliant component boasts a wide operating temperature range of -40°C to 125°C.
Frequency32MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC16LF1826-E/P technical specifications.
General
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
0.195inch
Interface
I2C, SPI, UART, USART
Length
0.92inch
Max Frequency
32MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
3.6V
Memory Size
3.5KB
Memory Type
FLASH
Min Supply Voltage
2.5V
Number of A/D Converters
1
Number of ADC Channels
12
Number of Bits
8
Number of I/Os
15
Number of I2C Channels
1
Number of Programmable I/O
16
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Number of USB Channels
1
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Series
PIC® XLP™ mTouch™ 16F
Watchdog Timer
Yes
Width
0.28inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1826-E/P Datasheet
Download the complete datasheet for Microchip PIC16LF1826-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

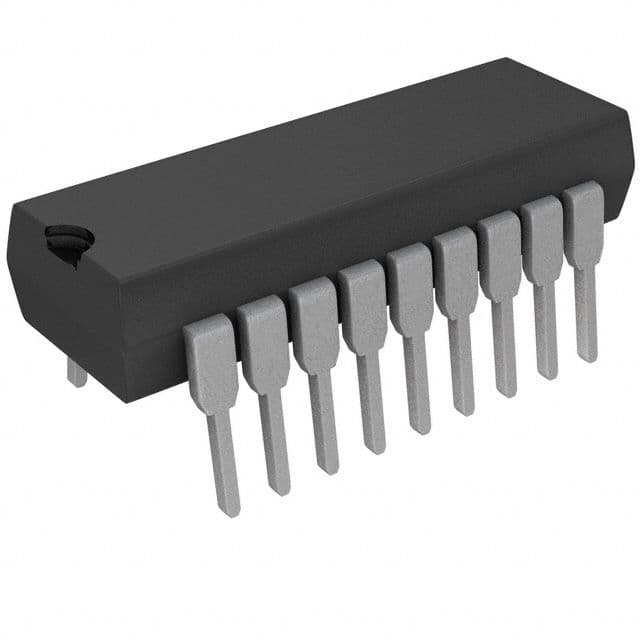

Product Images
