8-bit RISC microcontroller featuring 32MHz operation and 7KB FLASH memory. This integrated circuit offers 15 I/O pins, 12 ADC channels, and multiple communication interfaces including I2C, SPI, and USART. Operating from 2.5V to 3.6V, it includes peripherals like Brown-out Detect, POR, PWM, and a Watchdog Timer. Packaged in a 4mm x 4mm UQFN-28 with a 0.5mm height, this lead-free component is RoHS compliant.
Frequency32MHz
PackageQFN
Current430uA
Quick Jump:
Technical Specifications
Microchip PIC16LF1827-I/MV technical specifications.
General
| Address Bus Width | 8b |
| Package/Case | QFN |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 32MHz |
| Height | 0.5mm |
| Interface | I2C, SPI, USART, UART |
| Lead Free | Lead Free |
| Length | 4mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 3.6V |
| Memory Size | 7KB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.5V |
| Number of ADC Channels | 12 |
| Number of I/Os | 15 |
| Number of I2C Channels | 2 |
| Number of Programmable I/O | 16 |
| Number of PWM Channels | 4 |
| Number of SPI Channels | 2 |
| Number of Timers/Counters | 5 |
| Oscillator Type | Internal |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 384B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ mTouch™ 16F |
| Supply Current | 430uA |
| Watchdog Timer | Yes |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16LF1827-I/MV Datasheet
Download the complete datasheet for Microchip PIC16LF1827-I/MV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

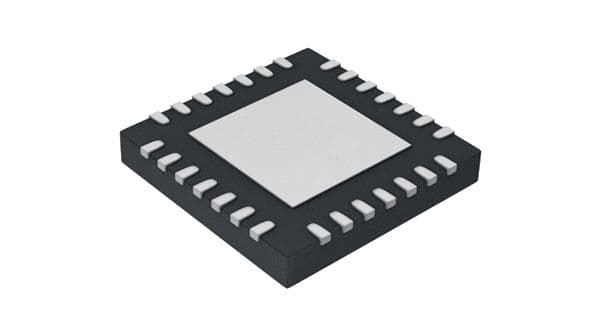

Product Images
