Technical Specifications
Microchip PIC16LF1829-E/GZ technical specifications.
General
Core Architecture
PIC
Data Bus Width
8b
Interface
I2C, SPI, UART, USART
Max Frequency
32MHz
Max Operating Temperature
125°C
Max Supply Voltage
3.6V
Memory Size
14KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of ADC Channels
12
Number of I/Os
17
Oscillator Type
Internal
Package Quantity
91
Packaging
Bulk
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
1KB
RoHS Compliant
Yes
Series
PIC® XLP™ mTouch™ 16F
Weight
0.004339oz
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1829-E/GZ Datasheet
Download the complete datasheet for Microchip PIC16LF1829-E/GZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

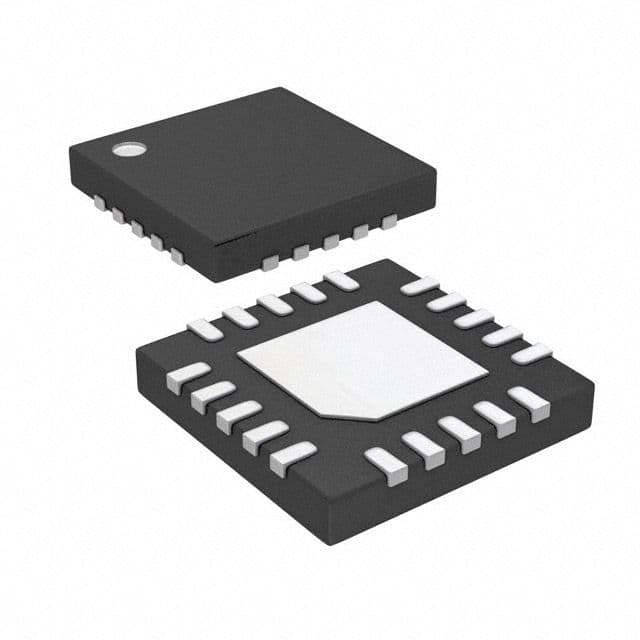

Product Images
