Microchip
PIC16LF1829-E/P
8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDIP20, 0.300 INCH, PLASTIC, DIP-20
Frequency32MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC16LF1829-E/P technical specifications.
General
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Interface
I2C, SPI, USART, UART
Max Frequency
32MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
3.6V
Memory Size
14KB
Memory Type
FLASH
Min Supply Voltage
2.3V
Number of I/Os
17
Number of Programmable I/O
18
Number of Timers/Counters
5
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
PIC® XLP™ mTouch™ 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1829-E/P Datasheet
Download the complete datasheet for Microchip PIC16LF1829-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

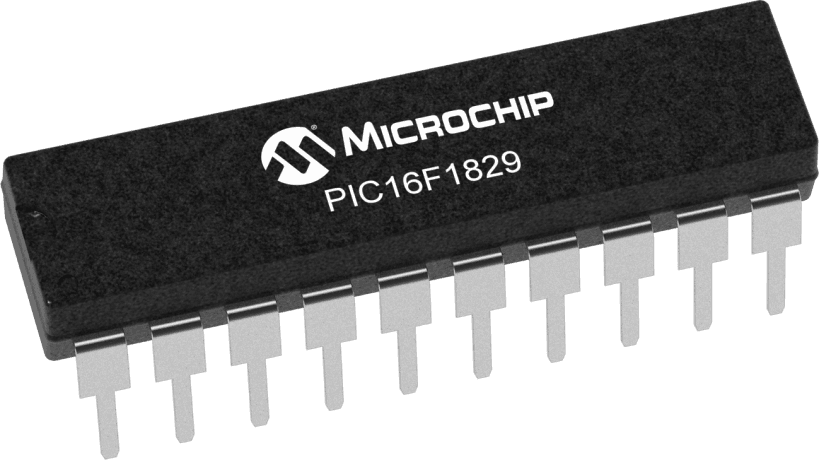

Product Images
