8-bit RISC microcontroller featuring 20MHz operation and 7KB FLASH memory. This PDIP-packaged MCU offers 35 I/Os, including 36 programmable, and supports USART/UART interfaces. Key peripherals include Brown-out Detect, POR, PWM, WDT, and LCD drivers. Operating from 1.8V to 3.6V, it boasts a 256B RAM and an internal oscillator, with a maximum power dissipation of 800mW.
Frequency20MHz
PackagePDIP
Current300uA
Quick Jump:
Technical Specifications
Microchip PIC16LF1904-I/P technical specifications.
General
| Address Bus Width | 8b |
| Package/Case | PDIP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 20MHz |
| Height | 0.195inch |
| Interface | USART, UART |
| Lead Free | Lead Free |
| Length | 2.095inch |
| Max Frequency | 20MHz |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 3.6V |
| Memory Size | 7KB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Number of A/D Converters | 1 |
| Number of ADC Channels | 14 |
| Number of Bits | 8 |
| Number of I/Os | 35 |
| Number of Programmable I/O | 36 |
| Number of Timers/Counters | 2 |
| Number of UART Channels | 1 |
| Oscillator Type | Internal |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, LCD |
| Radiation Hardening | No |
| RAM Size | 256B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 16F |
| Supply Current | 300uA |
| Watchdog Timer | Yes |
| Width | 0.58inch |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16LF1904-I/P Datasheet
Download the complete datasheet for Microchip PIC16LF1904-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

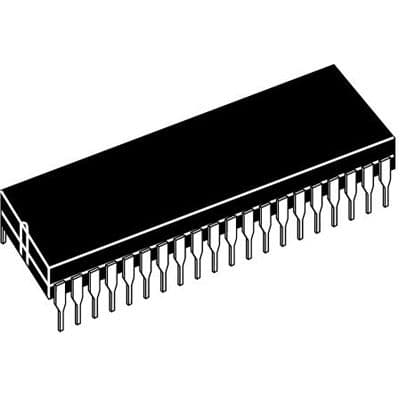

Product Images
