8-bit RISC microcontroller featuring 7KB FLASH memory and 256B RAM. Operates at up to 20MHz with an 8-bit address and data bus. Includes 35 I/O pins, 2 timers/counters, and 1 UART channel. Peripherals include POR, LCD, PWM, and WDT. Packaged in a 44-pin TQFP (10x10x1.05mm), operating from 1.8V to 3.6V, with a temperature range of -40°C to 85°C.
Frequency20MHz
PackageTQFP
Current300uA
Quick Jump:
Technical Specifications
Microchip PIC16LF1904-I/PT technical specifications.
General
Address Bus Width
8b
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
1.05mm
Interface
USART, UART, LIN
Lead Free
Lead Free
Length
10mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
3.6V
Memory Size
7KB
Memory Type
FLASH
Min Supply Voltage
1.8V
Number of A/D Converters
1
Number of ADC Channels
14
Number of Bits
8
Number of I/Os
35
Number of Programmable I/O
36
Number of Timers/Counters
2
Number of UART Channels
1
Packaging
Tray
Peripherals
POR, LCD, PWM, WDT
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
300uA
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1904-I/PT Datasheet
Download the complete datasheet for Microchip PIC16LF1904-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

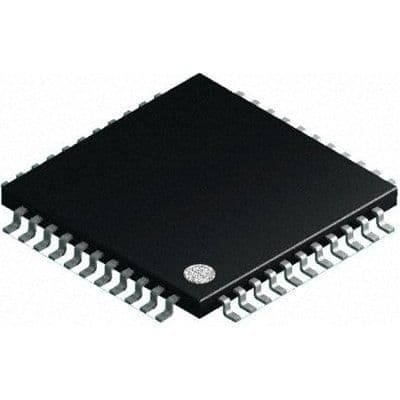

Product Images
