Microchip
PIC16LF1906-E/SS
8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO28, 5.30 MM, LEAD FREE, PLASTIC, SSOP-28
Frequency20MHz
PackageSSOP
Quick Jump:
Technical Specifications
Microchip PIC16LF1906-E/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Interface
UART, USART
Max Frequency
20MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Memory Size
14KB
Memory Type
FLASH
Number of I/Os
25
Number of Programmable I/O
25
Number of Timers/Counters
2
Operating Supply Voltage
5.5V
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LCD
Radiation Hardening
No
RAM Size
512B
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1906-E/SS Datasheet
Download the complete datasheet for Microchip PIC16LF1906-E/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

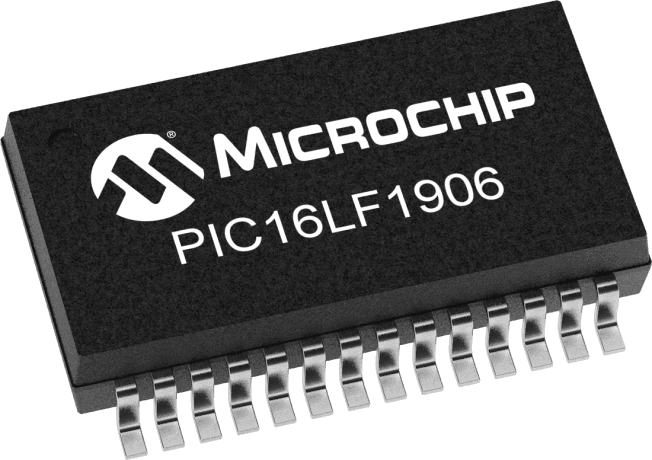

Product Images
