8-bit CMOS microcontroller featuring a PIC core architecture, operating at up to 20MHz. This integrated circuit offers 14KB of FLASH memory and 512B of RAM, with 25 programmable I/O pins. Integrated peripherals include USART, UART, Brown-out Detect/Reset, POR, PWM, WDT, and LCD support. Operating voltage ranges from 1.8V to 3.6V, with an operating temperature range of -40°C to 85°C. Includes 1 A/D converter with 11 channels and 2 timers/counters.
Frequency20MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip PIC16LF1906-I/SP technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.195inch
Interface
USART, UART
Lead Free
Lead Free
Length
1.565inch
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
3.6V
Memory Size
14KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of A/D Converters
1
Number of ADC Channels
11
Number of Bits
8
Number of I/Os
25
Number of Programmable I/O
25
Number of Timers/Counters
2
Number of UART Channels
1
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LCD
Radiation Hardening
No
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Width
0.58inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1906-I/SP Datasheet
Download the complete datasheet for Microchip PIC16LF1906-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

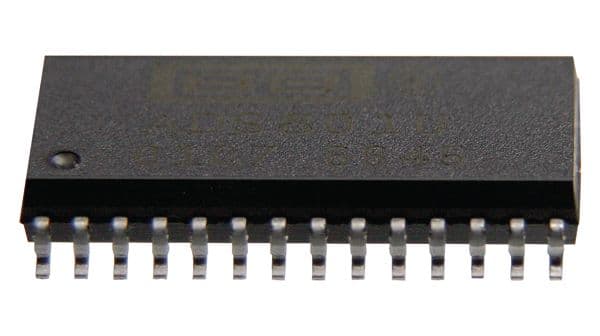

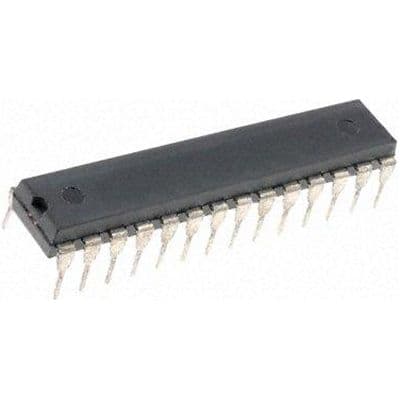

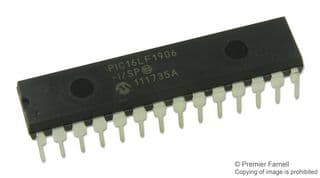

Product Images
