8-bit RISC Flash Microcontroller, operating at up to 20 MHz, featuring 14KB Flash memory and 512B RAM. This PIC® XLP™ 16F series MCU offers 25 programmable I/Os, two timers/counters, and an internal oscillator. Integrated peripherals include UART, USART, PWM, WDT, LCD, Brown-out Detect/Reset, and POR. Designed for operation between -40°C and 85°C, it supports supply voltages from 1.8V to 3.6V and is available in SSOP-28 packaging.
Frequency16MHz
PackageSSOP
Quick Jump:
Technical Specifications
Microchip PIC16LF1906T-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
16MHz
Interface
UART, USART
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
14KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
3.6V
Min Supply Voltage
1.8V
Number of I/Os
25
Number of Programmable I/O
25
Number of Timers/Counters
2
Oscillator Type
Internal
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LCD
Radiation Hardening
No
RAM Size
512B
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1906T-I/SS Datasheet
Download the complete datasheet for Microchip PIC16LF1906T-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

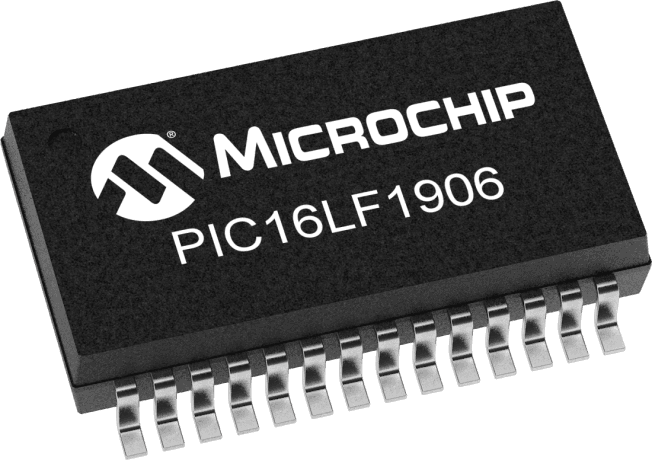

Product Images
