8-bit PIC RISC microcontroller featuring 7KB Flash memory and 256B RAM. Operates at up to 32MHz with a wide supply voltage range of 1.8V to 3.6V. Offers 36 I/Os, including 35 programmable, and supports SPI, I2C, and UART interfaces. Includes 14 ADC channels, 5 PWM channels, and 5 timers/counters, with integrated peripherals like Brown-out Detect, POR, and WDT. Packaged in a 40-pin PDIP for through-hole mounting, with an operating temperature range of -40°C to 85°C.
Frequency32MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16LF1934-I/P technical specifications.
General
| Package/Case | PDIP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Density | 7KB |
| Frequency | 32MHz |
| Height | 0.195inch |
| Interface | SPI, I2C, UART, USART |
| Length | 53.21mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 3.6V |
| Memory Size | 7KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 1.8V |
| Mount | Through Hole |
| Number of ADC Channels | 14 |
| Number of I/Os | 36 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 35 |
| Number of PWM Channels | 5 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 5 |
| Oscillator Type | Internal |
| Package Quantity | 10 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, LCD |
| Radiation Hardening | No |
| RAM Size | 256B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 16F |
| Termination | Through Hole |
| Watchdog Timer | Yes |
| Width | 0.58inch |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16LF1934-I/P Datasheet
Download the complete datasheet for Microchip PIC16LF1934-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

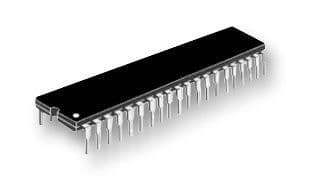

Product Images
