8-bit RISC microcontroller featuring 14KB FLASH memory and 512B RAM, operating at up to 32MHz. This surface mount device offers 25 I/O pins, including 35 programmable I/O, and supports SPI, I2C, UART, USART, and LIN interfaces. Integrated peripherals include multiple timers/counters, 11 ADC channels, 5 PWM channels, and a watchdog timer. Designed for a wide operating temperature range of -40°C to 85°C with a supply voltage from 1.8V to 3.6V.
Frequency32MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16LF1936-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Density
14KB
Frequency
32MHz
Height
1.85mm
Interface
SPI, I2C, UART, USART, LIN
Lead Free
Lead Free
Length
10.5mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
3.6V
Memory Size
14KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of ADC Channels
11
Number of I/Os
25
Number of I2C Channels
1
Number of Programmable I/O
35
Number of PWM Channels
5
Number of SPI Channels
1
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LCD, I2C
Radiation Hardening
No
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Watchdog Timer
Yes
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1936-I/SS Datasheet
Download the complete datasheet for Microchip PIC16LF1936-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

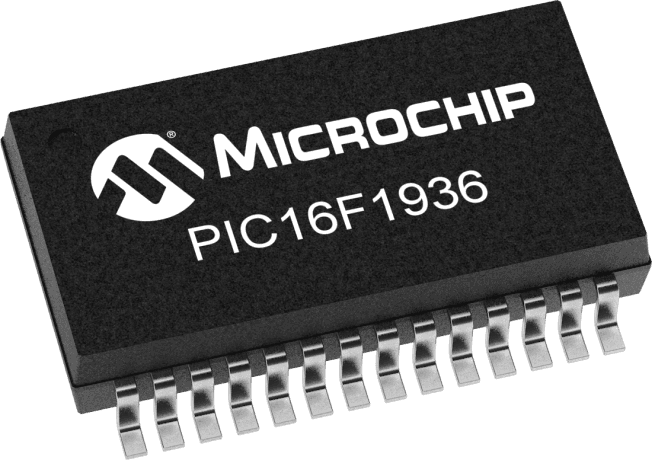

Product Images
