8-bit RISC microcontroller featuring 4MHz operation and 3.5KB FLASH memory. This PDIP package offers 15 I/O pins, an 8-bit data bus, and includes peripherals such as USART, SCI, UART, Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer. Operating from 2V to 5.5V, it supports an access time of 4µs and a maximum power dissipation of 800mW, with an operating temperature range of -40°C to 85°C.
Frequency4MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC16LF628-04I/P technical specifications.
General
Access Time
4us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Height
3.68mm
Interface
USART, SCI, UART
Lead Free
Lead Free
Length
22.99mm
Max Frequency
4MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH
Min Supply Voltage
2V
Number of Bits
8
Number of I/Os
15
Number of Programmable I/O
16
Number of PWM Channels
1
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
25
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
224B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Width
6.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF628-04I/P Datasheet
Download the complete datasheet for Microchip PIC16LF628-04I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

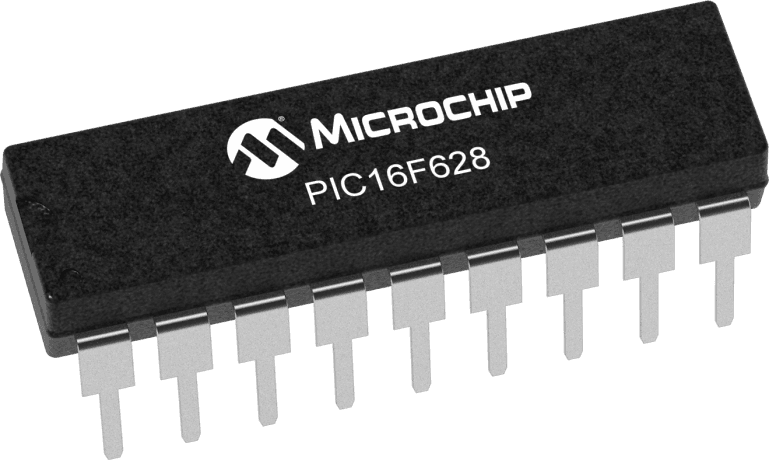

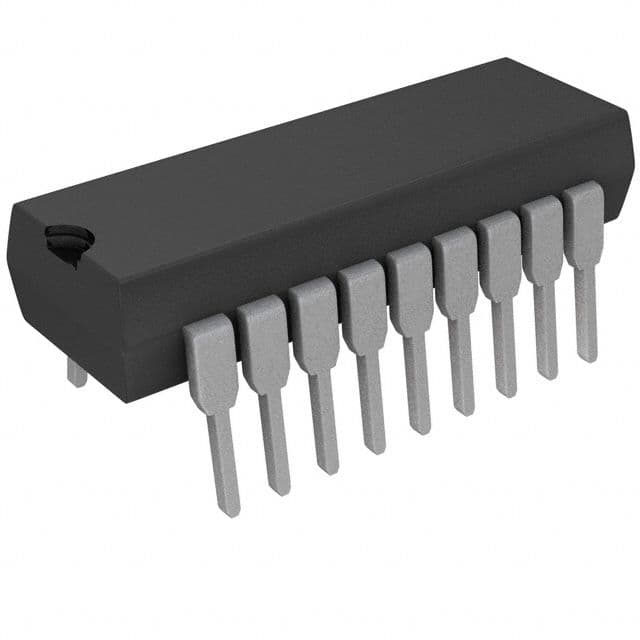

Product Images
