8-bit RISC microcontroller featuring 20MHz operation and 3.5KB FLASH memory. This through-hole component offers 16 programmable I/Os, 3 timers/counters, and 1 PWM channel. Integrated peripherals include Brown-out Detect/Reset, POR, and WDT. Operates from 2V to 5.5V with a maximum power dissipation of 800mW. Housed in an 18-pin PDIP package.
Frequency20MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16LF628A-I/P technical specifications.
General
Access Time
20us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.195inch
Interface
USART, SCI, UART
Lead Free
Lead Free
Length
23.37mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Through Hole
Number of I/Os
16
Number of Programmable I/O
16
Number of PWM Channels
1
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
25
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
224B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Width
0.28inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF628A-I/P Datasheet
Download the complete datasheet for Microchip PIC16LF628A-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

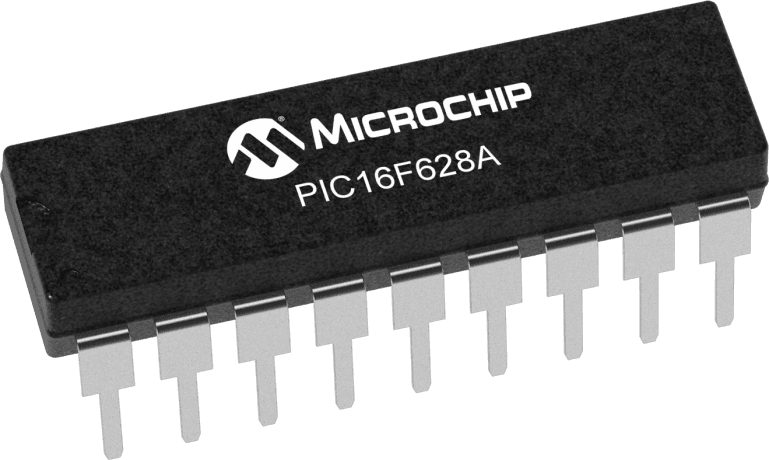

Product Images
