8-bit RISC microcontroller operating at 33MHz, featuring 16KB OTP memory and 454B RAM. This microcontroller offers 33 programmable I/O pins, 2 PWM channels, and 4 timers/counters. It supports external oscillator types and includes peripherals like POR, WDT, USART, SCI, and UART interfaces. Packaged in a 40-pin PDIP, it operates from a 4.5V to 5.5V supply voltage and is RoHS compliant.
Frequency33MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC17C44-33I/P technical specifications.
General
Access Time
33us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
33MHz
Height
4.064mm
Interface
USART, SCI, UART
Lead Free
Lead Free
Length
52.2mm
Max Frequency
33MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
16KB
Memory Type
OTP
Min Supply Voltage
4.5V
Number of Bits
8
Number of I/Os
33
Number of Programmable I/O
33
Number of PWM Channels
2
Number of Timers/Counters
4
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
10
Packaging
Rail/Tube
Peripherals
POR, PWM, WDT
Radiation Hardening
No
RAM Size
454B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 17C
Watchdog Timer
Yes
Width
13.97mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC17C44-33I/P Datasheet
Download the complete datasheet for Microchip PIC17C44-33I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

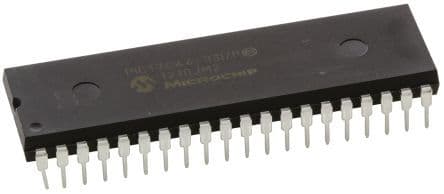

Product Images
