8-bit RISC microcontroller featuring a 33MHz core frequency and 16KB EPROM/OTP memory. This surface mount device offers 33 programmable I/O pins, 4 timers/counters, and integrated peripherals including POR, PWM, and WDT. Operating from a 4.5V to 5.5V supply, it supports external oscillator types and includes USART, SCI, and UART interfaces. Packaged in a 44-pin QFP, it operates within a -40°C to 85°C temperature range.
Frequency33MHz
PackageQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC17C44-33I/PQ technical specifications.
General
Access Time
33us
Package/Case
QFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
33MHz
Interface
USART, SCI, UART
Lead Free
Lead Free
Max Frequency
33MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
16KB
Memory Type
EPROM, , OTP
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Programmable I/O
33
Number of Timers/Counters
4
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
96
Packaging
Tray
Peripherals
POR, PWM, WDT
Radiation Hardening
No
RAM Size
454B
RoHS Compliant
Yes
Series
PIC® 17C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC17C44-33I/PQ Datasheet
Download the complete datasheet for Microchip PIC17C44-33I/PQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

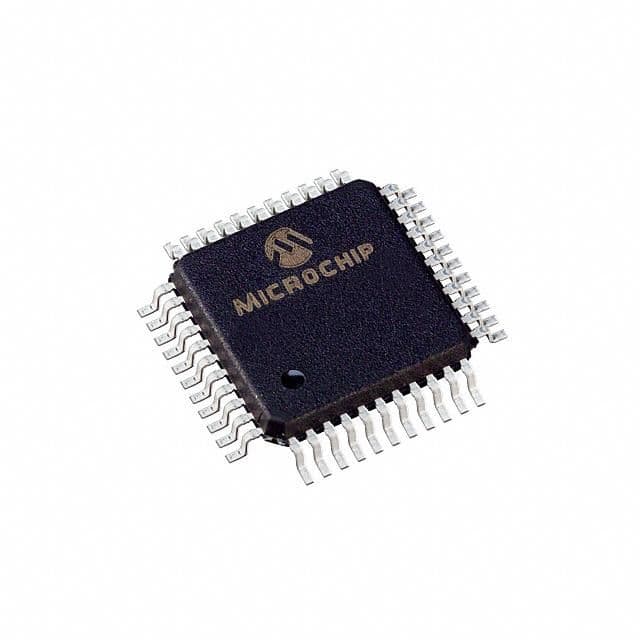

Product Images
