8-bit Flash Microcontroller, operating at up to 40MHz, featuring 8KB Flash memory and 256B RAM. This through-hole component offers 16 I/O pins, 7 ADC channels, 4 PWM channels, and 4 timers/counters. Integrated peripherals include UART/USART, Brown-out Detect/Reset, POR, WDT, and LVD. With a voltage range of 4.2V to 5.5V and a temperature range of -40°C to 85°C, it is housed in a PDIP-18 package.
Frequency40MHz
PackagePDIP
Current380uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC18F1320-I/P technical specifications.
General
Access Time
40us
Address Bus Width
8b
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Density
8KB
Frequency
40MHz
Height
0.195inch
Interface
UART, USART
Lead Free
Lead Free
Length
23.37mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Min Supply Voltage
4.2V
Mount
Through Hole
Number of ADC Channels
7
Number of Bits
8
Number of I/Os
16
Number of Programmable I/O
16
Number of PWM Channels
4
Number of Timers/Counters
4
Oscillator Type
Internal
Package Quantity
25
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
380uA
Watchdog Timer
Yes
Width
0.28inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F1320-I/P Datasheet
Download the complete datasheet for Microchip PIC18F1320-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

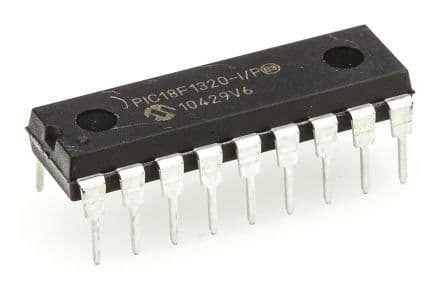

Product Images
