8-bit Flash microcontroller featuring an 8b data bus and a 40MHz maximum operating frequency. This surface mount device, housed in an SOIC package, offers 8KB of FLASH memory and 256B of RAM. Integrated peripherals include UART, USART, Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer. Operating voltage ranges from 4.2V to 5.5V, with a typical 5V operation.
Frequency40MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F1320T-I/SO technical specifications.
General
Access Time
40us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
40MHz
Interface
UART, USART
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
8KB
Memory Type
FLASH,
Min Supply Voltage
4.2V
Mount
Surface Mount
Number of Programmable I/O
16
Number of Timers/Counters
4
Operating Supply Voltage
5V
Oscillator Type
Internal
Package Quantity
1100
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Series
PIC® 18F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F1320T-I/SO Datasheet
Download the complete datasheet for Microchip PIC18F1320T-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

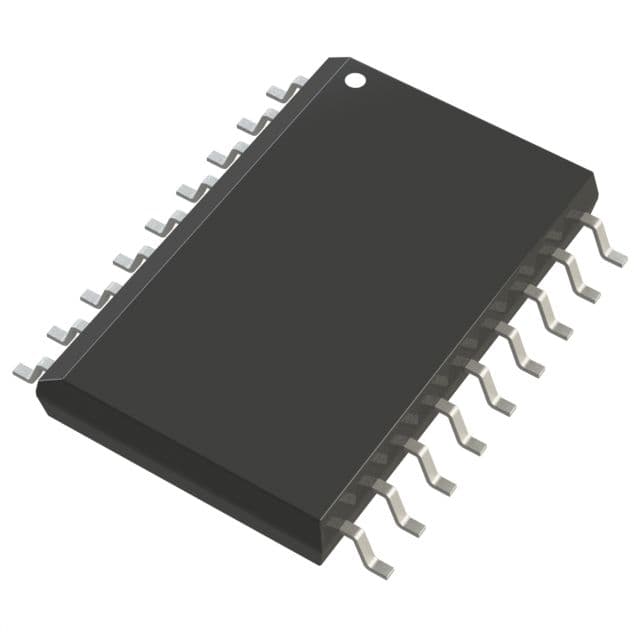

Product Images
