8-bit Flash Microcontroller (MCU) operating at up to 48MHz. Features 16KB Flash memory, 768B RAM, and 15 programmable I/O pins. Supports I2C, SPI, USB, and UART interfaces. Includes 11 A/D converter channels and 4 timers/counters. Packaged in a 20-pin SOIC (SOIC-20) surface mount case.
Frequency48MHz
PackageSOIC
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F14K50-I/SO technical specifications.
General
Address Bus Width
8b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Density
16KB
Frequency
48MHz
Height
2.35mm
Interface
I2C, SPI, USB, UART, USART
Lead Free
Lead Free
Length
12.8mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
11
Number of Bits
8
Number of I/Os
15
Number of I2C Channels
1
Number of Programmable I/O
15
Number of PWM Channels
1
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
38
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
768B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
1mA
Termination
SMD/SMT
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F14K50-I/SO Datasheet
Download the complete datasheet for Microchip PIC18F14K50-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

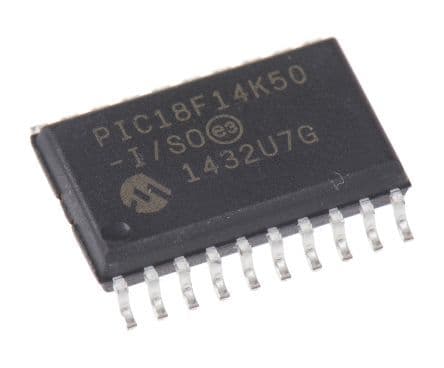

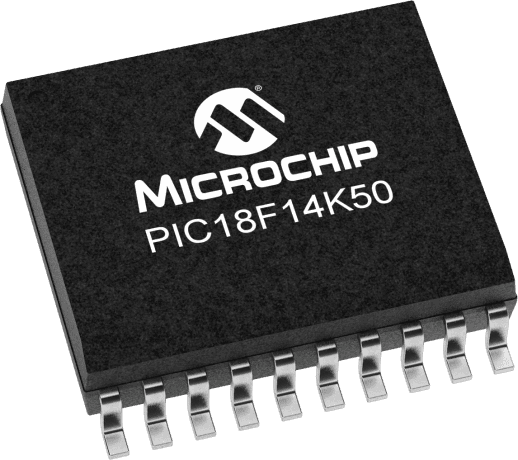

Product Images
