8-bit microcontroller featuring 8KB FLASH memory and 512B RAM, operating at a maximum frequency of 40MHz. This through-hole component offers 25 programmable I/O pins and supports I2C, SPI, and UART interfaces. Integrated peripherals include multiple timers/counters, 2 PWM channels, and an internal oscillator. Designed for a wide operating temperature range of -40°C to 85°C, it is RoHS compliant and housed in a 28-pin DIP package.
Frequency40MHz
PackageDIP
Current400uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC18F2320-I/SP technical specifications.
General
Access Time
40us
Address Bus Width
8b
Package/Case
DIP
Core Architecture
PIC
Data Bus Width
8b
Density
8KB
Frequency
40MHz
Height
0.15inch
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Length
35.56mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
4.2V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
10
Number of Bits
8
Number of I/Os
25
Number of I2C Channels
1
Number of Programmable I/O
25
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 18F
Supply Current
400uA
Watchdog Timer
Yes
Width
0.295inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F2320-I/SP Datasheet
Download the complete datasheet for Microchip PIC18F2320-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

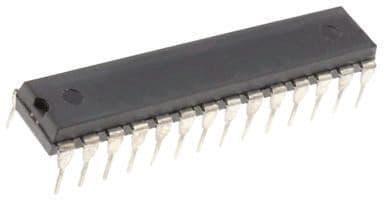

Product Images
