8-bit RISC microcontroller featuring 64MHz maximum operating frequency and 8KB FLASH memory. This integrated circuit offers 512B RAM, 24 I/O pins, and supports I2C, SPI, and UART interfaces. Operating from 1.8V to 5.5V, it includes 17 A/D channels across 2 converters and 7 timers. Packaged in a lead-free QFN EP, this RoHS compliant component operates between -40°C and 85°C.
Frequency16MHz
PackageQFN EP
Quick Jump:
Technical Specifications
Microchip PIC18F23K22-I/ML technical specifications.
General
Package/Case
QFN EP
Core Architecture
PIC
Data Bus Width
8b
Frequency
16MHz
Height
0.037inch
Interface
I2C, SPI, USART, UART
Length
0.236inch
Max Frequency
64MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
8KB
Memory Type
FLASH
Min Supply Voltage
1.8V
Number of A/D Converters
2
Number of ADC Channels
17
Number of Bits
8
Number of I/Os
24
Number of I2C Channels
2
Number of Programmable I/O
25
Number of SPI Channels
2
Number of Timers/Counters
7
Number of UART Channels
2
Packaging
Rail/Tube
Radiation Hardening
No
RAM Size
512B
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
0.236inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F23K22-I/ML Datasheet
Download the complete datasheet for Microchip PIC18F23K22-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

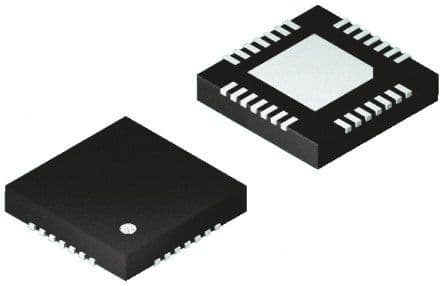

Product Images
