8-bit RISC microcontroller featuring 40MHz clock speed and 16KB FLASH memory. This DIP-28 packaged MCU offers 768B RAM, 22 I/Os, and supports I2C, SPI, USART, UART, and CAN interfaces. Integrated peripherals include 5 ADC channels, 1 PWM channel, 4 timers/counters, and a watchdog timer. Operating voltage ranges from 4.2V to 5.5V with a temperature range of -40°C to 85°C.
Frequency40MHz
PackageDIP
Current1.7mA
Quick Jump:
Technical Specifications
Microchip PIC18F248-I/SP technical specifications.
General
Access Time
40us
Address Bus Width
8b
Package/Case
DIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
40MHz
Height
3.43mm
Interface
I2C, SPI, USART, UART, CAN
Lead Free
Lead Free
Length
35.18mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
16KB
Memory Type
FLASH
Min Supply Voltage
4.2V
Number of ADC Channels
5
Number of Bits
8
Number of I/Os
22
Number of I2C Channels
1
Number of Programmable I/O
23
Number of PWM Channels
1
Number of SPI Channels
1
Number of Timers/Counters
4
Oscillator Type
External
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
768B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 18F
Supply Current
1.7mA
Watchdog Timer
Yes
Width
7.49mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F248-I/SP Datasheet
Download the complete datasheet for Microchip PIC18F248-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

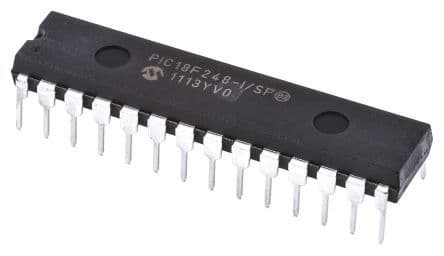

Product Images
