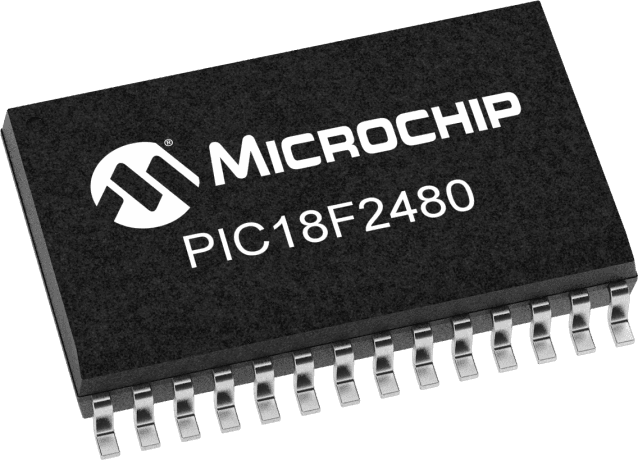

MICROCHIP

PIC18F2480-I/SO

Datasheet

8-Bit 40MHz FLASH MCU, SOIC-28, 16KB, 25 I/O, I2C, SPI, UART, CAN

Microchip

PIC18F2480-I/SO

Name: PIC18F2480-I/SO Microchip
Brand: Microchip
SKU: PIC18F2480-I/SO

8-Bit 40MHz FLASH MCU, SOIC-28, 16KB, 25 I/O, I2C, SPI, UART, CAN

8-bit Flash Microcontroller, operating at up to 40MHz, featuring 16KB Flash memory and 768B RAM. This surface-mount SOIC-28 package offers 25 programmable I/Os, supporting I2C, SPI, USART, CAN, and UART interfaces. Integrated peripherals include Brown-out Detect/Reset, POR, PWM, WDT, HLVD, and 8 ADC channels. Designed for a 4.2V to 5.5V supply voltage, this lead-free component operates within a -40°C to 85°C temperature range.

Frequency40MHz

PackageSOIC

Current400uA

MountingSurface Mount

Quick Jump:

Technical Specifications

Microchip PIC18F2480-I/SO technical specifications.

General

Access Time	40us
Address Bus Width	8b
Package/Case	SOIC
Core Architecture	PIC
Data Bus Width	8b
Density	16KB
Frequency	40MHz
Height	2.35mm
Interface	I2C, SPI, USART, CAN, UART
Lead Free	Lead Free
Length	17.9mm
Max Frequency	40MHz
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Power Dissipation	1W
Max Supply Voltage	5.5V
Memory Size	16KB
Memory Type	FLASH,
Min Supply Voltage	4.2V
Mount	Surface Mount
Number of A/D Converters	1
Number of ADC Channels	8
Number of Bits	8
Number of I/Os	25
Number of I2C Channels	1
Number of Programmable I/O	25
Number of PWM Channels	1
Number of SPI Channels	1
Number of Timers/Counters	4
Number of UART Channels	1
Operating Supply Voltage	5V
Oscillator Type	Internal
Package Quantity	27
Packaging	Rail/Tube
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C
Radiation Hardening	No
RAM Size	768B
Reach SVHC Compliant	No
RoHS Compliant	Yes
Supply Current	400uA
Watchdog Timer	Yes
Width	7.5mm
