8-bit RISC microcontroller featuring 40MHz operation and 16KB FLASH memory. This surface mount device offers 21 programmable I/Os, multiple interfaces including I2C, SPI, and UART, and integrated peripherals like a watchdog timer and PWM. Operating from 2V to 3.6V, it supports a wide temperature range of -40°C to 85°C. Additional features include 10 ADC channels and 3 timers/counters.
Frequency40MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F24J10-I/ML technical specifications.
General
Access Time
40us
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
40MHz
Height
0.037inch
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
0.236inch
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
10
Number of Bits
8
Number of I/Os
21
Number of I2C Channels
1
Number of Programmable I/O
21
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
0.236inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F24J10-I/ML Datasheet
Download the complete datasheet for Microchip PIC18F24J10-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

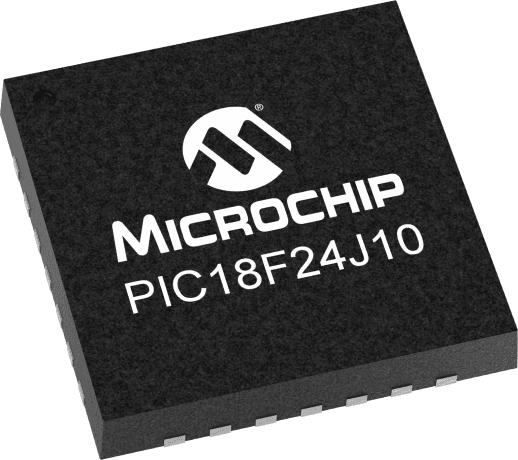

Product Images
