8-bit RISC microcontroller featuring 64MHz operation and 16KB FLASH memory. This PDIP28 packaged MCU offers 24 I/Os, including 25 programmable I/O pins, and supports I2C, SPI, and UART interfaces. Integrated peripherals include 7 timers/counters, 5 PWM channels, and 17 ADC channels across 2 A/D converters. Operating from 1.8V to 5.5V, it boasts a wide temperature range of -40°C to 85°C.
Frequency64MHz
PackageDIP
Quick Jump:
Technical Specifications
Microchip PIC18F24K22-I/SP technical specifications.
General
Package/Case
DIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
64MHz
Height
0.15inch
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
1.4inch
Max Frequency
64MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
16KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of A/D Converters
2
Number of ADC Channels
17
Number of Bits
8
Number of I/Os
24
Number of I2C Channels
2
Number of Programmable I/O
25
Number of PWM Channels
5
Number of SPI Channels
2
Number of Timers/Counters
7
Number of UART Channels
2
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD
Radiation Hardening
No
RAM Size
768B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
0.295inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F24K22-I/SP Datasheet
Download the complete datasheet for Microchip PIC18F24K22-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

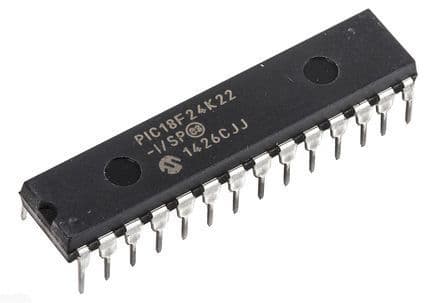

Product Images
