8-bit microcontroller featuring a PIC core architecture, operating at up to 48MHz. This QFN-packaged MCU offers 16KB of FLASH memory and 2KB of RAM, with 24 I/O pins. Integrated interfaces include I2C, SPI, USB, and UART/USART, alongside 14 ADC channels and 4 timers. Designed for a supply voltage range of 2.3V to 5.5V, it supports a wide operating temperature range from -40°C to 85°C.
Frequency48MHz
PackageQFN
Current2.1mA
Quick Jump:
Technical Specifications
Microchip PIC18F24K50-I/ML technical specifications.
General
Address Bus Width
8b
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
48MHz
Height
0.95mm
Interface
I2C, SPI, USB, UART, USART
Lead Free
Lead Free
Length
6mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
16KB
Memory Type
FLASH
Min Supply Voltage
2.3V
Number of ADC Channels
14
Number of I/Os
24
Number of I2C Channels
1
Number of Programmable I/O
25
Number of SPI Channels
1
Number of Timers/Counters
4
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 18K
Supply Current
2.1mA
Watchdog Timer
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F24K50-I/ML Datasheet
Download the complete datasheet for Microchip PIC18F24K50-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

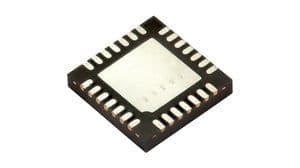

Product Images
