8-bit microcontroller featuring 48KB FLASH memory and 3986B RAM. Operates at a maximum frequency of 40MHz with an 8-bit address and data bus. Supports I2C, SPI, and UART interfaces, with 25 programmable I/O pins. Includes 10 ADC channels, 2 PWM channels, and 4 timers. Packaged in a 28-pin DIP for through-hole mounting, with an operating temperature range of -40°C to 85°C.
Frequency40MHz
PackageDIP
Current1.1mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC18F2525-I/SP technical specifications.
General
Access Time
40us
Address Bus Width
8b
Package/Case
DIP
Core Architecture
PIC
Data Bus Width
8b
Density
48KB
Frequency
40MHz
Height
0.15inch
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
35.56mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
48KB
Memory Type
FLASH,
Min Supply Voltage
4.2V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
10
Number of Bits
8
Number of I/Os
25
Number of I2C Channels
1
Number of Programmable I/O
25
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C
Radiation Hardening
No
RAM Size
3986B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
1.1mA
Watchdog Timer
Yes
Width
0.295inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F2525-I/SP Datasheet
Download the complete datasheet for Microchip PIC18F2525-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

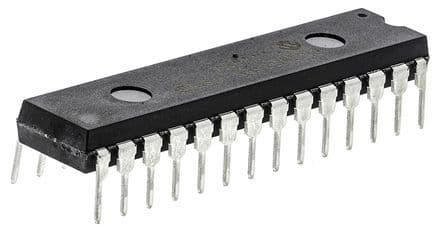

Product Images
