8-bit RISC microcontroller featuring 48KB FLASH memory and 3.25KB RAM, operating at a maximum frequency of 40MHz. This surface-mount device offers 25 I/O pins, including 8 ADC channels and 1 PWM channel, with integrated I2C, SPI, CAN, and UART interfaces. Designed for a wide operating temperature range of -40°C to 85°C, it supports a supply voltage from 4.2V to 5.5V and includes peripherals like a watchdog timer and brown-out detection. Packaged in a 28-pin SOIC case, this RoHS compliant component is ideal for embedded applications.
Frequency40MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F2585-I/SO technical specifications.
General
Access Time
40us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Density
48KB
Frequency
40MHz
Height
2.35mm
Interface
I2C, SPI, CAN, UART, USART
Lead Free
Lead Free
Length
17.9mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
48KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
4.2V
Mount
Surface Mount
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
25
Number of I2C Channels
1
Number of Programmable I/O
28
Number of PWM Channels
1
Number of SPI Channels
1
Number of Timers/Counters
4
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD
Radiation Hardening
No
RAM Size
3.25KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F2585-I/SO Datasheet
Download the complete datasheet for Microchip PIC18F2585-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

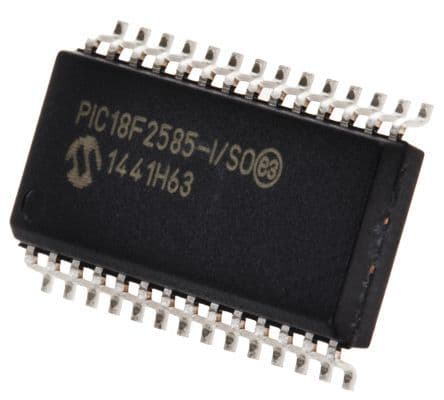

Product Images
