8-bit RISC Flash Microcontroller, operating at up to 64MHz. Features 32KB Flash memory, 1.5KB RAM, and 24 I/O pins with 25 programmable I/O. Includes multiple communication interfaces: I2C (2 channels), SPI (2 channels), and UART/USART (2 channels). Offers 7 timers/counters, 5 PWM channels, and 2 A/D converters with 17 channels. Packaged in a 28-pin PDIP, this lead-free component supports a supply voltage range of 1.8V to 5.5V and operates from -40°C to 85°C.
Frequency64MHz
PackageDIP
Quick Jump:
Technical Specifications
Microchip PIC18F25K22-I/SP technical specifications.
General
| Address Bus Width | 8b |
| Package/Case | DIP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 64MHz |
| Height | 0.15inch |
| Interface | I2C, SPI, UART, USART |
| Lead Free | Lead Free |
| Length | 1.4inch |
| Max Frequency | 64MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 5.5V |
| Memory Size | 32KB |
| Memory Type | FLASH |
| Min Supply Voltage | 1.8V |
| Number of A/D Converters | 2 |
| Number of ADC Channels | 17 |
| Number of Bits | 8 |
| Number of I/Os | 24 |
| Number of I2C Channels | 2 |
| Number of Programmable I/O | 25 |
| Number of PWM Channels | 5 |
| Number of SPI Channels | 2 |
| Number of Timers/Counters | 7 |
| Number of UART Channels | 2 |
| Oscillator Type | Internal |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C |
| Radiation Hardening | No |
| RAM Size | 1.5KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 18K |
| Watchdog Timer | Yes |
| Width | 0.295inch |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC18F25K22-I/SP Datasheet
Download the complete datasheet for Microchip PIC18F25K22-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

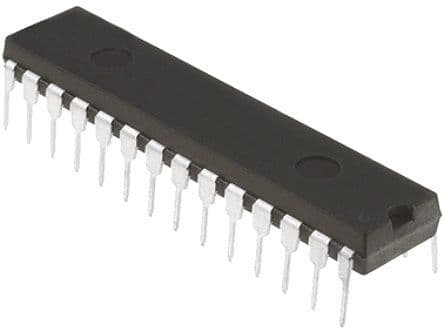

Product Images
