8-bit microcontroller featuring a PIC core architecture, operating at up to 48MHz. This FLASH memory microcontroller offers 32KB of program memory and 2KB of RAM, with 24 I/O pins including 25 programmable I/O. Integrated interfaces include I2C, SPI, USB, and UART/USART, supported by 4 timers/counters and 14 ADC channels. Packaged in an SSOP case, it operates from 2.3V to 5.5V, with a temperature range of -40°C to 85°C.
Frequency48MHz
PackageSSOP
Current2.1mA
Quick Jump:
Technical Specifications
Microchip PIC18F25K50-I/SS technical specifications.
General
Address Bus Width
8b
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
48MHz
Height
1.85mm
Interface
I2C, SPI, USB, UART, USART
Lead Free
Lead Free
Length
10.5mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
32KB
Memory Type
FLASH
Min Supply Voltage
2.3V
Number of ADC Channels
14
Number of I/Os
24
Number of I2C Channels
1
Number of Programmable I/O
25
Number of SPI Channels
1
Number of Timers/Counters
4
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
47
Packaging
Rail/Tube
Peripherals
PWM, Brown-out Detect/Reset, POR, WDT
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
2.1mA
Watchdog Timer
Yes
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F25K50-I/SS Datasheet
Download the complete datasheet for Microchip PIC18F25K50-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

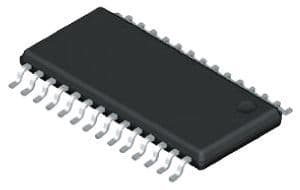

Product Images
