8-bit RISC microcontroller featuring 40MHz operation and 64KB FLASH memory. This surface mount device offers 25 programmable I/O pins and supports I2C, SPI, and UART interfaces. Operating from 4.2V to 5.5V, it includes peripherals such as PWM, WDT, and Brown-out Detect, with a RAM size of 3986B. Designed for a temperature range of -40°C to 85°C, this RoHS compliant component is supplied in a SOIC package.
Frequency40MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F2620T-I/SO technical specifications.
General
Access Time
40us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
40MHz
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
4.2V
Mount
Surface Mount
Number of I/Os
25
Number of Programmable I/O
25
Number of Timers/Counters
4
Operating Supply Voltage
5V
Oscillator Type
Internal
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C
Radiation Hardening
No
RAM Size
3986B
RoHS Compliant
Yes
Series
PIC® 18F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F2620T-I/SO Datasheet
Download the complete datasheet for Microchip PIC18F2620T-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

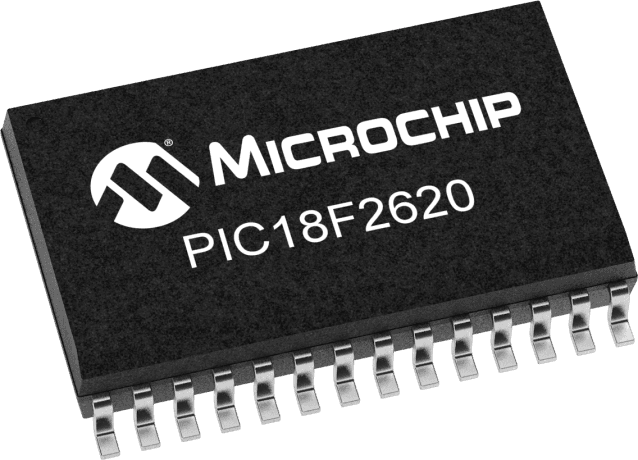

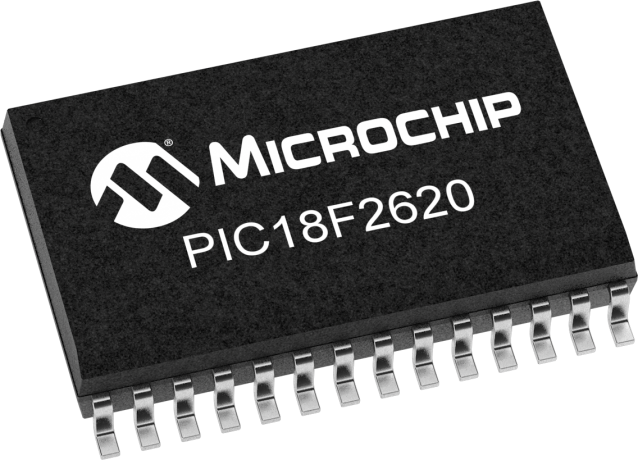

Product Images
