8-bit FLASH microcontroller featuring an 8b data bus width and a core architecture. Operates at a maximum frequency of 64MHz with 64KB of FLASH memory. Offers 25 programmable I/Os, multiple interfaces including I2C, SPI, and UART, and 11 ADC channels. This surface mount device is housed in a 6x6mm QFN EP package and operates within a temperature range of -40°C to 125°C.
Frequency64MHz
PackageQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F26K20-E/ML technical specifications.
General
Package/Case
QFN EP
Core Architecture
PIC
Data Bus Width
8b
Density
64KB
Frequency
64MHz
Height
0.95mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
6mm
Max Frequency
64MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
11
Number of Bits
8
Number of I/Os
25
Number of I2C Channels
1
Number of Programmable I/O
25
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C
Radiation Hardening
No
RAM Size
3936B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Watchdog Timer
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F26K20-E/ML Datasheet
Download the complete datasheet for Microchip PIC18F26K20-E/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

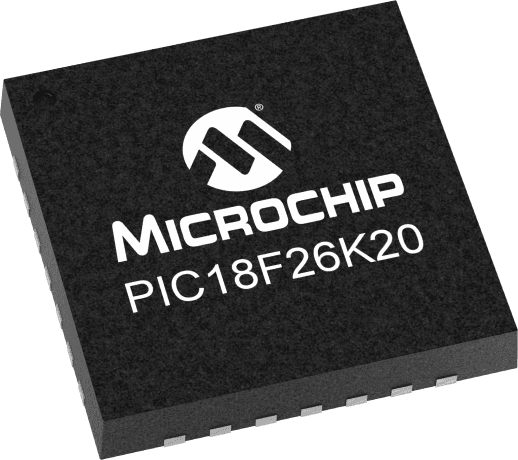

Product Images
