8-bit RISC microcontroller featuring 64MHz clock speed and 64KB FLASH memory. This QFN-packaged IC offers 24 I/O pins, 17 ADC channels, and multiple communication interfaces including I2C (2 channels), SPI (2 channels), and USART/UART. Integrated peripherals include Brown-out Detect/Reset, POR, PWM (5 channels), and a Watchdog Timer. Operating voltage ranges from 1.8V to 5.5V with a temperature range of -40°C to 85°C.
Frequency64MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip PIC18F26K22-I/ML technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
64MHz
Height
0.88mm
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Length
6mm
Max Frequency
64MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
64KB
Memory Type
FLASH
Min Supply Voltage
1.8V
Number of ADC Channels
17
Number of I/Os
24
Number of I2C Channels
2
Number of Programmable I/O
25
Number of PWM Channels
5
Number of SPI Channels
2
Number of Timers/Counters
7
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD
Radiation Hardening
No
RAM Size
3896B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 18K
Watchdog Timer
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F26K22-I/ML Datasheet
Download the complete datasheet for Microchip PIC18F26K22-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

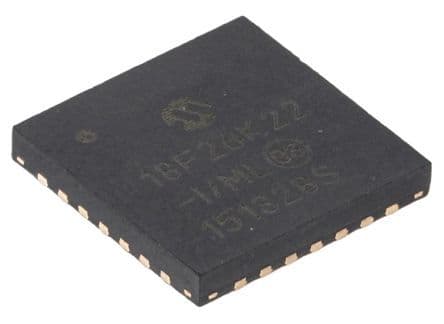

Product Images
