8-bit microcontroller featuring a PIC CPU core, operating at up to 64MHz. This CMOS microcontroller offers 64KB of FLASH memory and 3648B of RAM, with 24 programmable I/O pins. Integrated peripherals include I2C, SPI, UART, USART, LIN, and CAN interfaces, along with PWM and multiple timers. The QFN package measures 6mm x 6mm x 0.95mm, supporting a supply voltage range of 1.8V to 5.5V and operating temperatures from -40°C to 125°C.
Frequency64MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip PIC18F26K80-E/MM technical specifications.
General
| Package/Case | QFN |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 64MHz |
| Height | 0.95mm |
| Interface | I2C, SPI, UART, USART, LIN, CAN |
| Lead Free | Lead Free |
| Length | 6mm |
| Max Frequency | 64MHz |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 5.5V |
| Memory Size | 64KB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Number of ADC Channels | 8 |
| Number of I/Os | 24 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 24 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 5 |
| Packaging | Rail/Tube |
| Peripherals | PWM, I2C |
| Radiation Hardening | No |
| RAM Size | 3648B |
| RoHS Compliant | Yes |
| Watchdog Timer | Yes |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC18F26K80-E/MM Datasheet
Download the complete datasheet for Microchip PIC18F26K80-E/MM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

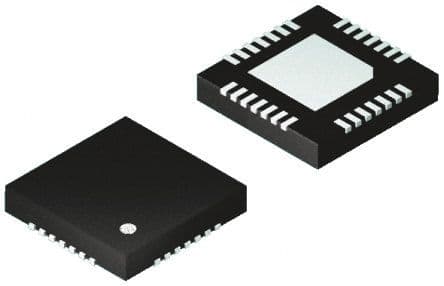

Product Images
