8-bit PIC microcontroller featuring a 64MHz core speed and 64KB FLASH memory. This CMOS microcontroller offers 24 programmable I/Os, 8 analog input channels with one A/D converter, and multiple communication interfaces including I2C, SPI, USART, UART, and CAN. Integrated peripherals include 5 PWM channels, 5 timers/counters, a watchdog timer, and USB connectivity. Operating from 1.8V to 5.5V, this RoHS compliant component is housed in a 28-pin PDIP package with an extended temperature range of -40°C to 125°C.
Frequency64MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC18F26K80-E/SP technical specifications.
General
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
64MHz
Height
0.15inch
Interface
I2C, SPI, USART, UART, CAN
Lead Free
Lead Free
Length
1.4inch
Max Frequency
64MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
64KB
Memory Type
FLASH
Min Supply Voltage
1.8V
Number of A/D Converters
1
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
24
Number of I2C Channels
1
Number of Programmable I/O
24
Number of PWM Channels
5
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
2
Number of USB Channels
1
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
3648B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 18K
Watchdog Timer
Yes
Width
0.295inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F26K80-E/SP Datasheet
Download the complete datasheet for Microchip PIC18F26K80-E/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

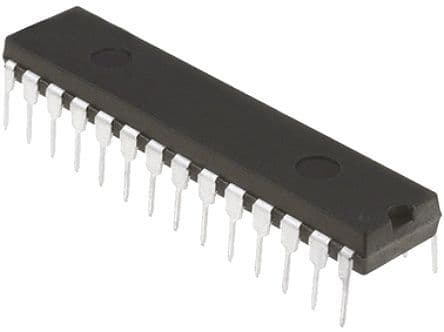

Product Images
