8-bit PIC microcontroller featuring a 64MHz core frequency and 64KB FLASH memory. This CMOS microcontroller offers 24 programmable I/O pins and supports I2C, SPI, UART, USART, LIN, and CAN interfaces. With 5 timers/counters and integrated PWM and I2C peripherals, it operates from 1.8V to 5.5V supply voltage and is RoHS compliant, suitable for operation between -40°C and 85°C.
Frequency64MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip PIC18F26K80-I/MM technical specifications.
General
| Package/Case | QFN |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 64MHz |
| Interface | I2C, SPI, UART, USART, LIN, CAN |
| Lead Free | Lead Free |
| Max Frequency | 64MHz |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 5.5V |
| Memory Size | 64KB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Number of I/Os | 24 |
| Number of Programmable I/O | 24 |
| Number of Timers/Counters | 5 |
| Packaging | Rail/Tube |
| Peripherals | PWM, I2C |
| Radiation Hardening | No |
| RAM Size | 3648B |
| RoHS Compliant | Yes |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC18F26K80-I/MM Datasheet
Download the complete datasheet for Microchip PIC18F26K80-I/MM to view detailed technical specifications.
No datasheet is available for this part.

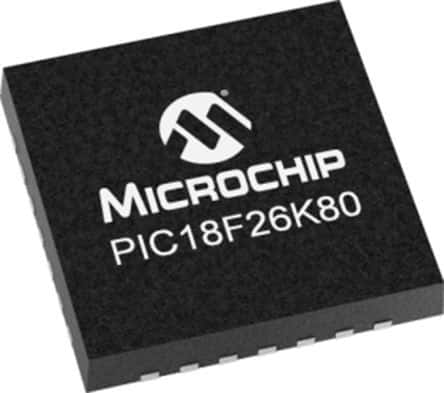

Product Images
