8-bit FLASH microcontroller featuring an 8KB memory density and operating at up to 64MHz. This PDIP-packaged MCU offers 35 I/O pins, including 36 programmable I/O, and supports I2C, SPI, and UART interfaces. On-chip peripherals include a watchdog timer, brown-out detect/reset, and 5 PWM channels. Designed for through-hole mounting, it operates from 1.8V to 3.6V and is RoHS compliant.
Frequency64MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC18F43K20-I/P technical specifications.
General
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Density
8KB
Frequency
64MHz
Height
0.195inch
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
53.21mm
Max Frequency
64MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Memory Size
8KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
14
Number of Bits
8
Number of I/Os
35
Number of I2C Channels
1
Number of Programmable I/O
36
Number of PWM Channels
5
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
10
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C
Radiation Hardening
No
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 18K
Termination
Through Hole
Watchdog Timer
Yes
Width
0.58inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F43K20-I/P Datasheet
Download the complete datasheet for Microchip PIC18F43K20-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

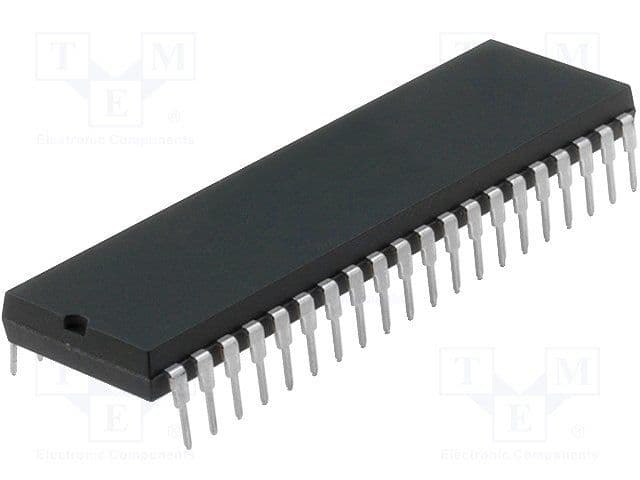

Product Images
