Technical Specifications
Microchip PIC18F4439-E/P technical specifications.
General
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Interface
I2C, SPI, UART, USART
Max Frequency
40MHz
Max Operating Temperature
125°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
12KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
4.2V
Number of Programmable I/O
32
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
10
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
640B
RoHS Compliant
Yes
Series
PIC® 18F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F4439-E/P Datasheet
Download the complete datasheet for Microchip PIC18F4439-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

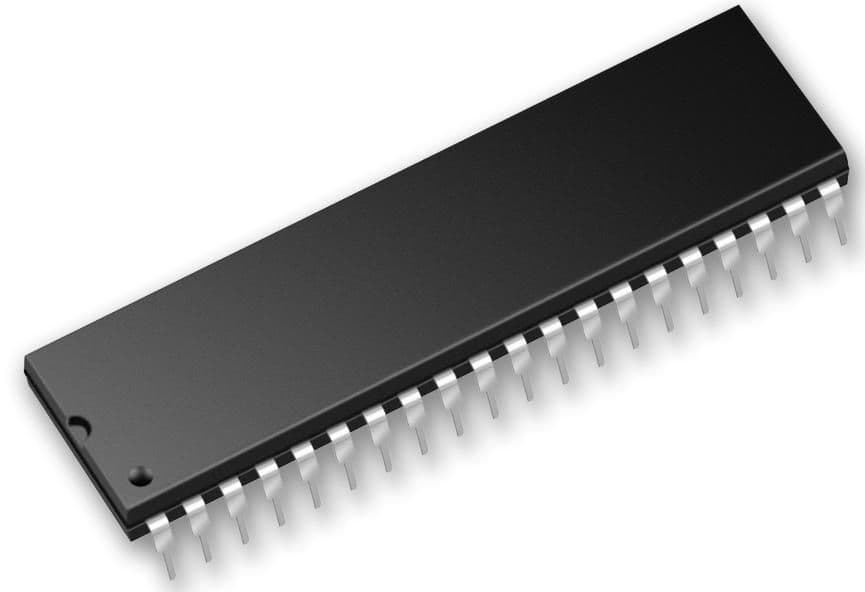

Product Images
