8-bit Flash microcontroller featuring an 8b data bus and operating at up to 48MHz. This PIC microcontroller offers 24KB of FLASH memory and 2KB of RAM, with 35 programmable I/Os. Integrated peripherals include I2C, SPI, USB, and UART interfaces, along with 4 timers/counters and 5 PWM channels. Designed for through-hole mounting in a PDIP-40 package, it operates from 4.2V to 5.5V and supports a temperature range of -40°C to 85°C.
Frequency48MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC18F4455-I/P technical specifications.
General
Access Time
48us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Density
24KB
Frequency
48MHz
Height
0.195inch
Interface
I2C, SPI, USB, UART, USART
Lead Free
Lead Free
Length
53.21mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
24KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
4.2V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
13
Number of Bits
8
Number of I/Os
35
Number of I2C Channels
1
Number of Programmable I/O
35
Number of PWM Channels
5
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
10
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 18F
Watchdog Timer
Yes
Width
0.58inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F4455-I/P Datasheet
Download the complete datasheet for Microchip PIC18F4455-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

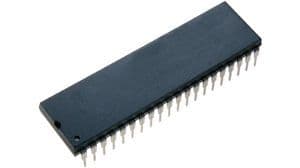

Product Images
