8-bit RISC microcontroller featuring a 64 MHz core frequency and 16KB FLASH memory. This integrated circuit offers 768B RAM, 35 I/O pins, and supports I2C, SPI, and UART interfaces. It includes 2 A/D converters with 28 channels, 5 PWM channels, and 7 timers/counters. Operating from 1.8V to 5.5V, this lead-free, QFN EP packaged component is suitable for applications within a -40°C to 85°C temperature range.
Frequency64MHz
PackageQFN EP
Quick Jump:
Technical Specifications
Microchip PIC18F44K22-I/ML technical specifications.
General
Package/Case
QFN EP
Core Architecture
PIC
Data Bus Width
8b
Frequency
64MHz
Height
0.95mm
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Length
8mm
Max Frequency
64MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
16KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of A/D Converters
2
Number of ADC Channels
28
Number of Bits
8
Number of I/Os
35
Number of I2C Channels
2
Number of Programmable I/O
36
Number of PWM Channels
5
Number of SPI Channels
2
Number of Timers/Counters
7
Number of UART Channels
2
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD
Radiation Hardening
No
RAM Size
768B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
8mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F44K22-I/ML Datasheet
Download the complete datasheet for Microchip PIC18F44K22-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

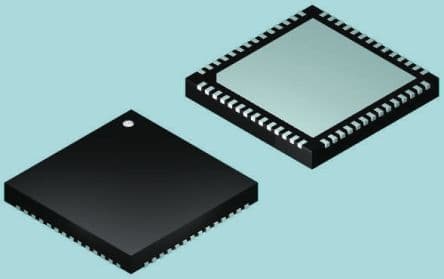

Product Images
