8-bit RISC microcontroller featuring 64MHz operation and 16KB FLASH memory. This PIC microcontroller offers 35 I/Os, including 36 programmable I/O pins, and supports I2C, SPI, and UART interfaces. It includes 2 A/D converters with 28 channels, 14 PWM channels, and 7 timers/counters. Packaged in a 44-pin TQFP (10x10x1.05mm), it operates from 1.8V to 5.5V and is RoHS compliant.
Frequency64MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip PIC18F44K22-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
64MHz
Height
1.05mm
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Length
10mm
Max Frequency
64MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
16KB
Memory Type
FLASH
Min Supply Voltage
1.8V
Number of A/D Converters
2
Number of ADC Channels
28
Number of Bits
8
Number of I/Os
35
Number of I2C Channels
2
Number of Programmable I/O
36
Number of PWM Channels
14
Number of SPI Channels
2
Number of Timers/Counters
7
Number of UART Channels
2
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C
Radiation Hardening
No
RAM Size
768B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 18K
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F44K22-I/PT Datasheet
Download the complete datasheet for Microchip PIC18F44K22-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

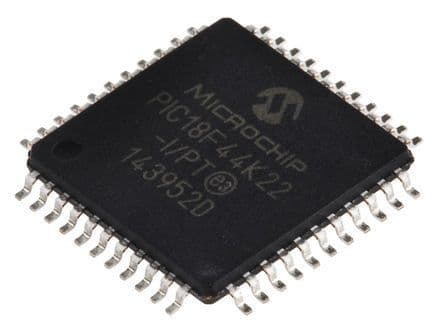

Product Images
