8-bit PIC RISC microcontroller featuring 32KB Flash memory and 1.5KB RAM. Operates at up to 40MHz with 34 programmable I/Os. Supports I2C, SPI, and UART interfaces, with 8 analog input channels and 2 PWM channels. Packaged in a 44-pin TQFP with a 0.5mm lead pitch, this RoHS compliant component operates from 4.2V to 5.5V and is suitable for temperatures between -40°C and 85°C. Includes peripherals like Brown-out Detect, POR, WDT, and LVD.
Frequency40MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip PIC18F452-I/PT technical specifications.
General
Access Time
40us
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
40MHz
Height
1.05mm
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Lead Pitch
0.5mm
Length
10.1mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
32KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
4.2V
Number of A/D Converters
1
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
34
Number of I2C Channels
1
Number of Programmable I/O
34
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
1
Oscillator Type
External
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
1.5KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 18F
Watchdog Timer
Yes
Width
10.1mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F452-I/PT Datasheet
Download the complete datasheet for Microchip PIC18F452-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

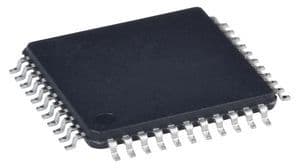

Product Images
