8-bit PIC RISC microcontroller featuring 32KB Flash memory and 1.5KB RAM. Operates at up to 40MHz with an 8-bit address and data bus. Offers 36 programmable I/Os, 13 A/D channels, 5 PWM channels, and 4 timers. Supports I2C, SPI, and UART interfaces. Packaged in a 44-pin TQFP with a 0.5mm lead pitch, suitable for surface mounting.
Frequency40MHz
PackageTQFP
Current1.1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F4520-I/PT technical specifications.
General
Access Time
40us
Address Bus Width
8b
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Data Rate
10Mbps
Density
32KB
Frequency
40MHz
Height
1.05mm
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Lead Pitch
0.5mm
Length
10mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
13
Number of Bits
8
Number of I/Os
36
Number of I2C Channels
1
Number of Programmable I/O
36
Number of PWM Channels
5
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C
RAM Size
1.5KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 18F
Supply Current
1.1mA
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F4520-I/PT Datasheet
Download the complete datasheet for Microchip PIC18F4520-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

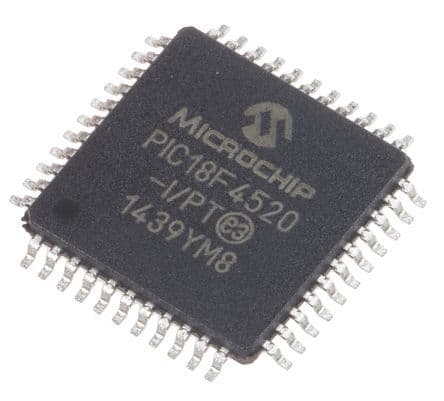

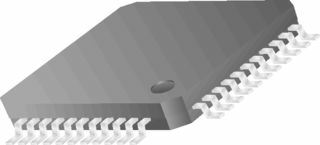

Product Images
