8-bit RISC microcontroller featuring 40MHz operation and 32KB FLASH memory. This PDIP-packaged MCU offers 33 programmable I/Os, 8 ADC channels, and multiple communication interfaces including I2C, SPI, USART, UART, and CAN. Operating from 4.2V to 5.5V, it includes peripherals like PWM, WDT, and Brown-out Detect, with a temperature range of -40°C to 85°C.
Frequency40MHz
PackagePDIP
Current1.7mA
Quick Jump:
Technical Specifications
Microchip PIC18F458-I/P technical specifications.
General
Access Time
40us
Address Bus Width
8b
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
40MHz
Height
4.06mm
Interface
I2C, SPI, USART, UART, CAN
Lead Free
Lead Free
Length
52.45mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Memory Size
32KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Min Supply Voltage
4.2V
Number of A/D Converters
1
Number of ADC Channels
8
Number of Bits
8
Number of Ethernet Channels
1
Number of I/Os
33
Number of I2C Channels
1
Number of Programmable I/O
33
Number of PWM Channels
5
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
1
Oscillator Type
External
Package Quantity
10
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
1.5KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 18F
Supply Current
1.7mA
Watchdog Timer
Yes
Width
14.22mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F458-I/P Datasheet
Download the complete datasheet for Microchip PIC18F458-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

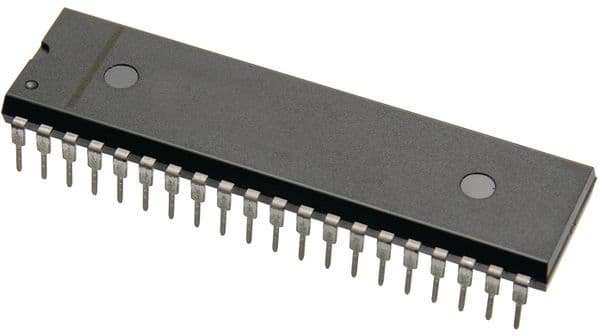

Product Images
