8-bit Flash Microcontroller, operating at up to 40MHz. Features 32KB Flash memory and 1.5KB RAM. Supports I2C, SPI, CAN, and UART interfaces. Includes 36 programmable I/Os, 4 timers/counters, and peripherals like PWM and Watchdog Timer. Packaged in a 44-pin TQFP for surface mounting, with an operating temperature range of -40°C to 85°C.
Frequency40MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F4580T-I/PT technical specifications.
General
Access Time
40us
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
40MHz
Interface
I2C, SPI, CAN, UART, USART
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
85°C
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Surface Mount
Number of I/Os
36
Number of Programmable I/O
36
Number of Timers/Counters
4
Oscillator Type
Internal
Package Quantity
1200
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C
Radiation Hardening
No
RAM Size
1.5KB
RoHS Compliant
Yes
Series
PIC® 18F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F4580T-I/PT Datasheet
Download the complete datasheet for Microchip PIC18F4580T-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

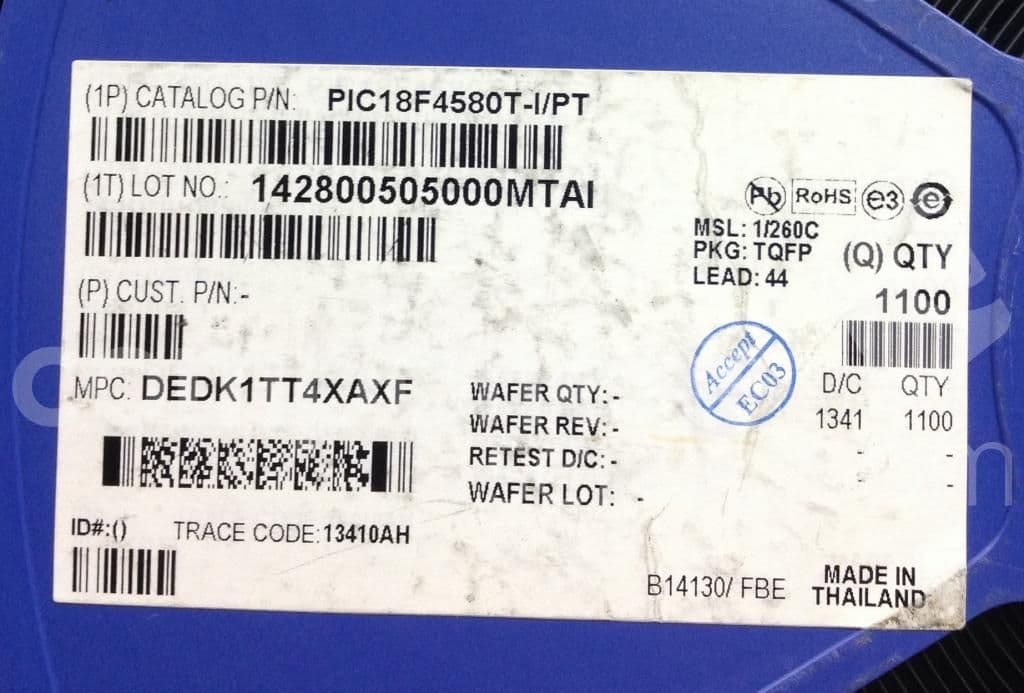

Product Images
