8-bit FLASH microcontroller featuring an 8-bit PIC core architecture, operating at up to 48MHz. This surface mount device offers 32KB of FLASH memory and 3776 bytes of RAM, with 34 I/O pins. Integrated peripherals include I2C, SPI, UART, USART interfaces, 13 A/D channels, 8 PWM channels, and 5 timers/counters. Packaged in a 44-pin QFN (8x8mm, 0.95mm height), it supports a supply voltage range of 2.15V to 3.6V and operates from -40°C to 85°C.
Frequency48MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F45J11-I/ML technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Density
32KB
Frequency
48MHz
Height
0.95mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
8mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Min Supply Voltage
2.15V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
13
Number of Bits
8
Number of I/Os
34
Number of I2C Channels
2
Number of PWM Channels
8
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
45
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
3776B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 18J
Termination
SMD/SMT
Watchdog Timer
Yes
Width
8mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F45J11-I/ML Datasheet
Download the complete datasheet for Microchip PIC18F45J11-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

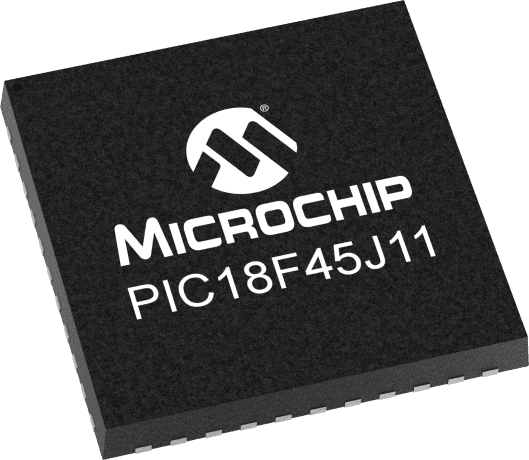

Product Images
